主要特点:Main Characters

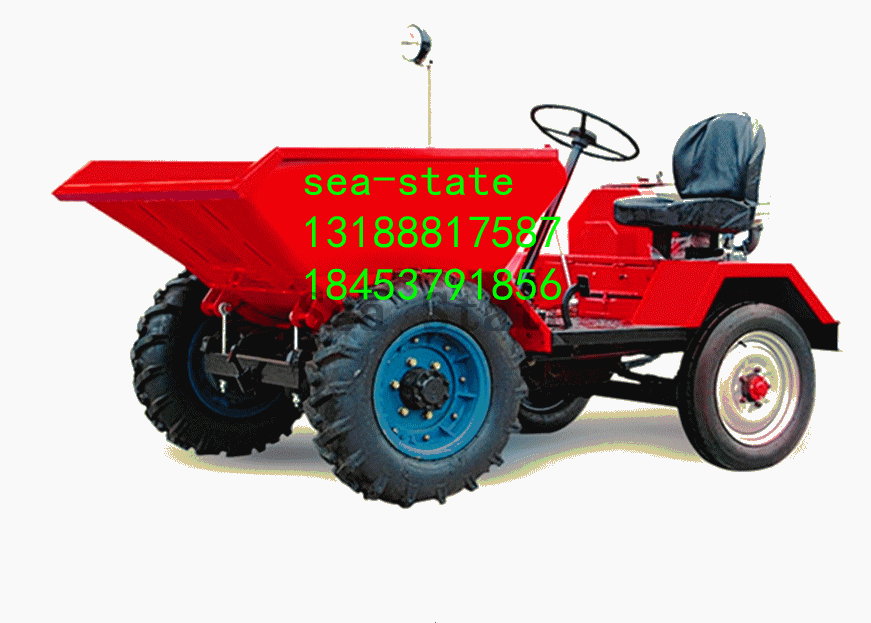

1.GJ-10型翻斗车是按照国家标准设计和生产,该产品各项指标均 达到国家标准。
GJ - 10 dumper is according to the national standard design and production, the product all the indexes meet the national standards.
2.配置ZS1100型柴油机、选用平型转动,提高了机械效率。
Configuration ZS1100 type diesel engine, choose flat rotation, improves the mechanical efficiency
3.配置液压制动,制动平稳,安全可靠。
Configuration of the hydraulic brake, brake steady, safe and reliable.
4.料斗采用重力卸料,撞块式机械回斗:操作简便,卸料、回斗可靠。
Hopper adopts gravity discharge, collision block machine back into the bucket, easy operation, discharge, back to the bucket and reliable.
5.采用直接排挡,换档轻便可靠。
Adopts the direct gear, shift of portable and reliable.
6.耗油量低,由于采用直喷式发动机,提高了动力传输效率。
Fuel consumption is low, because use truck engine, to improve the efficiency of power transmission.
7.维修方便。 maintainability
铲斗容量 Bucket capacity(m³) | 0.5 |
额定装运质量The shipping quality rating(kg) | 1000 |
整机质量Net weight(kg) | 900 |
发动机型号Engine Mobile | ZS1100 |
发动机标定功率rating power of engine | 11.3 |
轴距spread of axles(mm) | 1700 |
最小离地间隙minimum ground clearance(mm) | 300 |
额定功率rated power(kw) | 12.13 |
最小转弯半径minimum turning radius(mm) | ≤3000 |
外型尺寸external dimension(长L×宽W×高H)(mm) | 2620×1480×2078 |
轮距wheel track(mm) | 1280 |
|
|
